Description

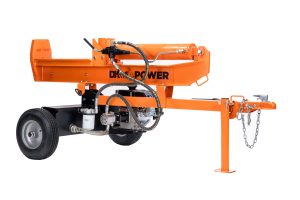

The DK2 by Marlon OPS232 is a robust 32-ton hydraulic log splitter designed for both residential and professional use. Powered by a 6.5HP Kohler SH265 engine, this machine efficiently splits logs up to 25.5 inches in length and 21.6 inches in diameter, making it an ideal solution for managing large volumes of firewood. Whether you’re preparing firewood for the winter or managing large-scale wood splitting tasks, the DK2 by Marlon OPS232 offers the power and efficiency needed for demanding outdoor power equipment applications.
Features
Specifications
| UPC | 827518008584 |
|---|---|
| Brand | DK2 |
| Certification(s) | EPA Phase III, CARB Phase III |
| Material | Steel |
| Material Finish | UV Powder Coated |
| Color | Black, Orange |
| Wheels | D.O.T. 4.80-8 16 in (40.6 cm) O.D. |
| Coupler | 2 in (5.08 cm) ball |
| Wheelbase | 37 in (94 cm) |
| Hydraulic Cylinder | Ø4.5 in (Ø11.4 cm) x 24 in (60.9 cm) (L) |
| Hydraulic Flow Rate | 15 GPM (56.8 LPM) |
| Hydraulic Oil Capacity | 8.5 gal (32 L) |
| Type of Hydraulic Oil | AW32/AW46 |
| Hydraulic Oil Filter | 10 micron (1,250 mesh) paper with NBR (Buna-N) seals |
| Maximum Speed | Not highway towable and max speed 25 mph (40 km/h) |
| Engine/Motor | KOHLER® SH265 6.5 HP 196 cc gas engine |
| Engine/Motor Maximum Torque | 10.2 ft/lb (13.8 Nm) |
| Cycle Time | 13 seconds |
| Beam | 8.5 in (21.6 cm) |
| Maximum Splitting Capacity | 25.5 in (64.7 cm) (L) x Ø21.6 in (Ø54.8 cm) |
| Wedge | 8.5 in (21.6 cm) heat-treated steel |
| Valve | Auto-retract with adjustable detent |
| Assembled Dimensions (LxWxH) | 89.4 in x 51.2 in x 37.4 in (227.1 cm x 130 cm x 95 cm) |
| Assembled Weight | 529 lb (240 kg) |
| Shipping Dimensions (LxWxH) | 70.9 in x 31.5 in x 19.7 in (180.1 cm x 80 cm x 50 cm) |
| Disclaimer | Product appearance and specifications are subject to change, Not highway towable and max speed 25 mph (40 km/h) |
| Warranty | 2-year KOHLER® engine and 1-year limited DK2 chassis |
